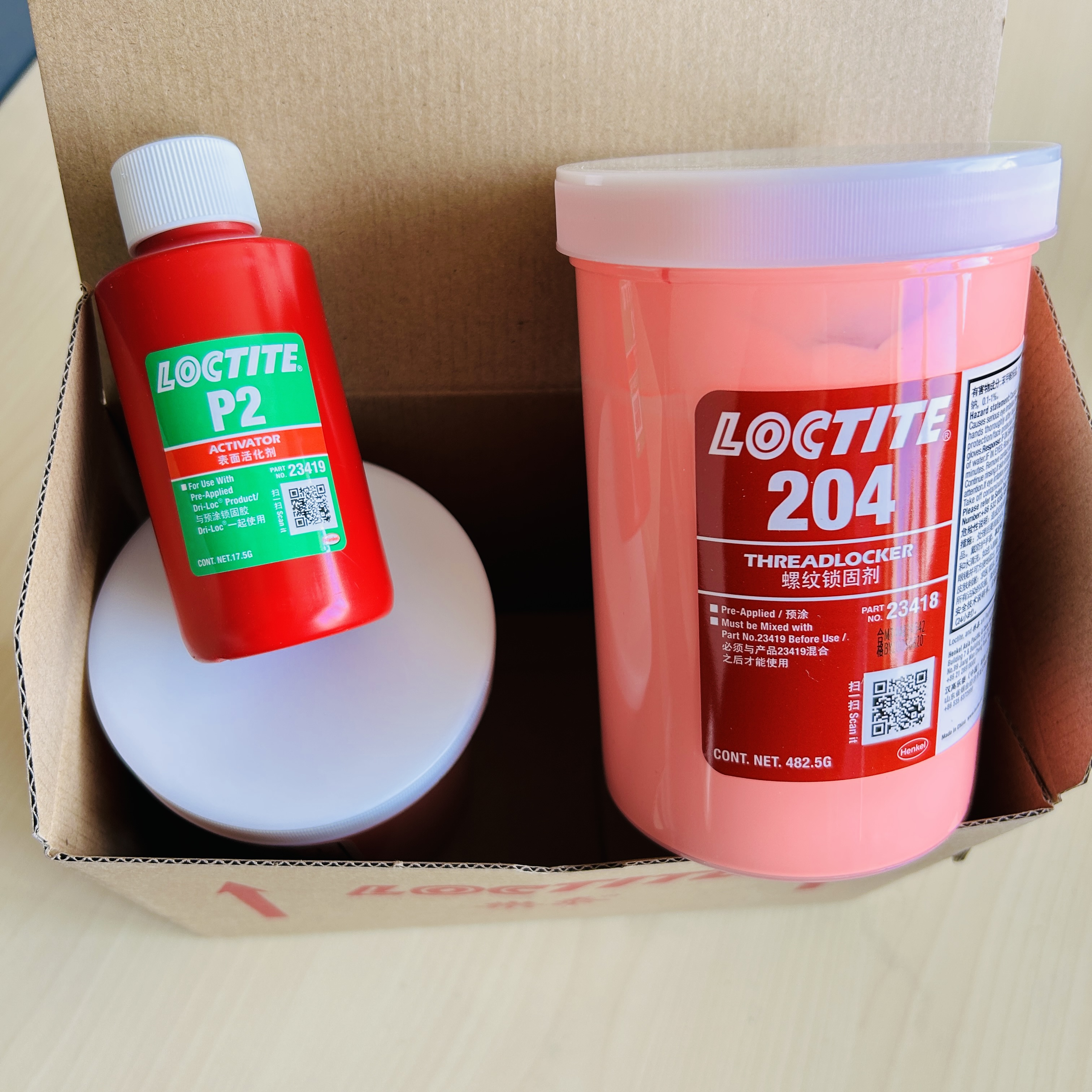

LOCTITE® DRI 204™ is a dry-to-the-touch, preapplied film for threaded fasteners. It remains inert on the fastener until assembly of the threads releases a quick curing resin. The resin fills all the voids in the threads and cures to securely lock and seal the assembly.

LOCTITE® DRI 204™ prevents loosening through vibration to provide locking and sealing of threaded assemblies. Typical applications include locking carburetor screws, transmission nuts, head bolts, truck axle bolts and tower bolts and also for sealing transmission bolts and pipe plugs and fittings. This product is typically used in applications with an operating range of -54 °C to +150 °C. LOCTITE® DRI 503HV™ is a high viscosity, non-toxic, thixotropic, preapplied, water-based thread sealant for automatic dispensing applications. When dried, it becomes a resilient, tight-clinging, non-curing sealant for tapered or straight threads.

LOCTITE® DRI 503HV™ provides positive sealing and resistence to vibrational loosening. The threadfilling ability and prevailing torque characteristics of this product are effective for use on sealing applications, particularly where re-adjustments are required, e.g. rear axle filler plugs, bearing adjuster nuts, pressure gauges and sensors, brake fittings, pipe fittings, and compressor pipe plugs. Other devices that this product is designed for includes; cable connectors, screws for plastic assemblies, adjustment screws, overhead fire sprinklers, shower heads, and door closure hardware. This product is typically used in applications with an operating range of -54 °C to +150 °C.

Bonds more material. Faster.

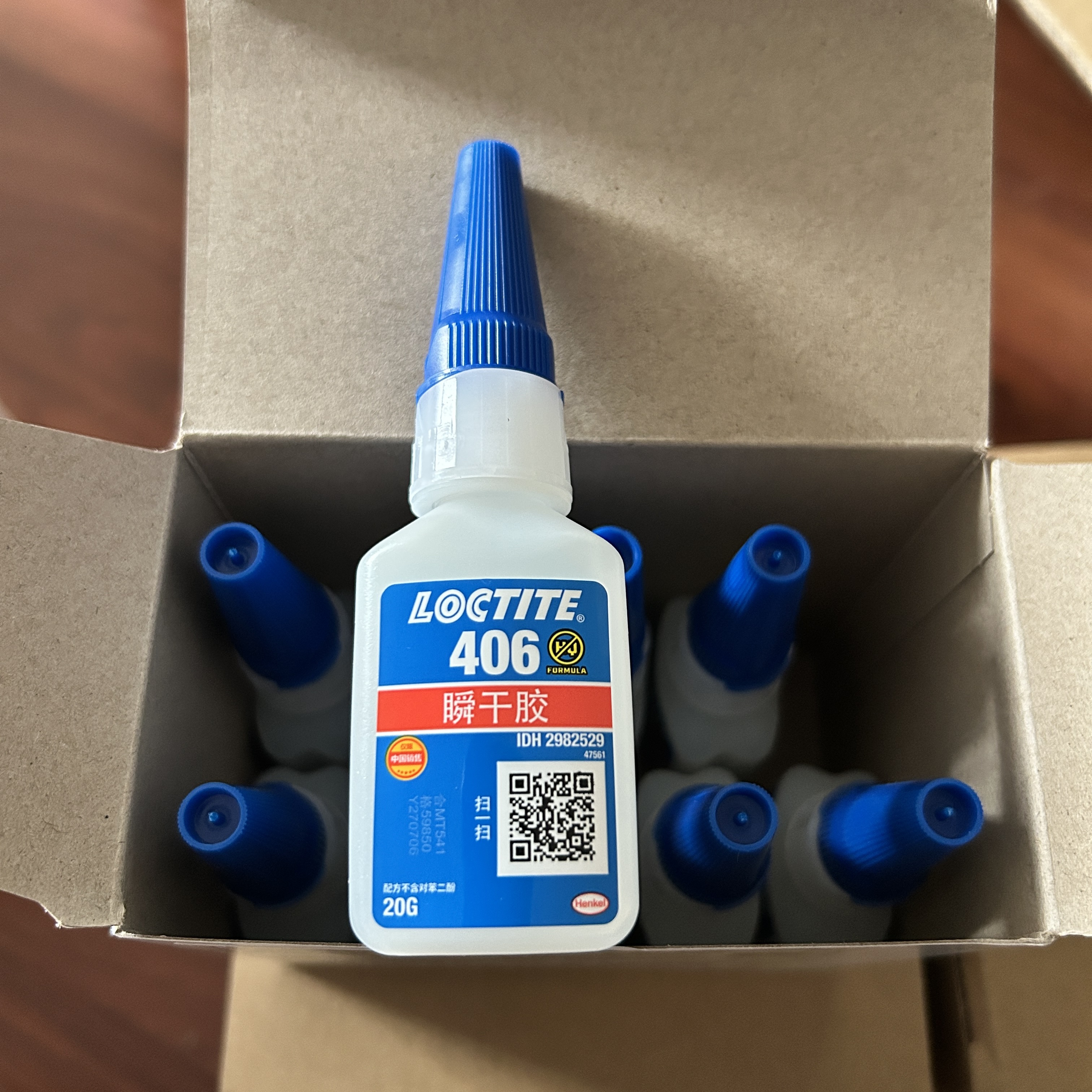

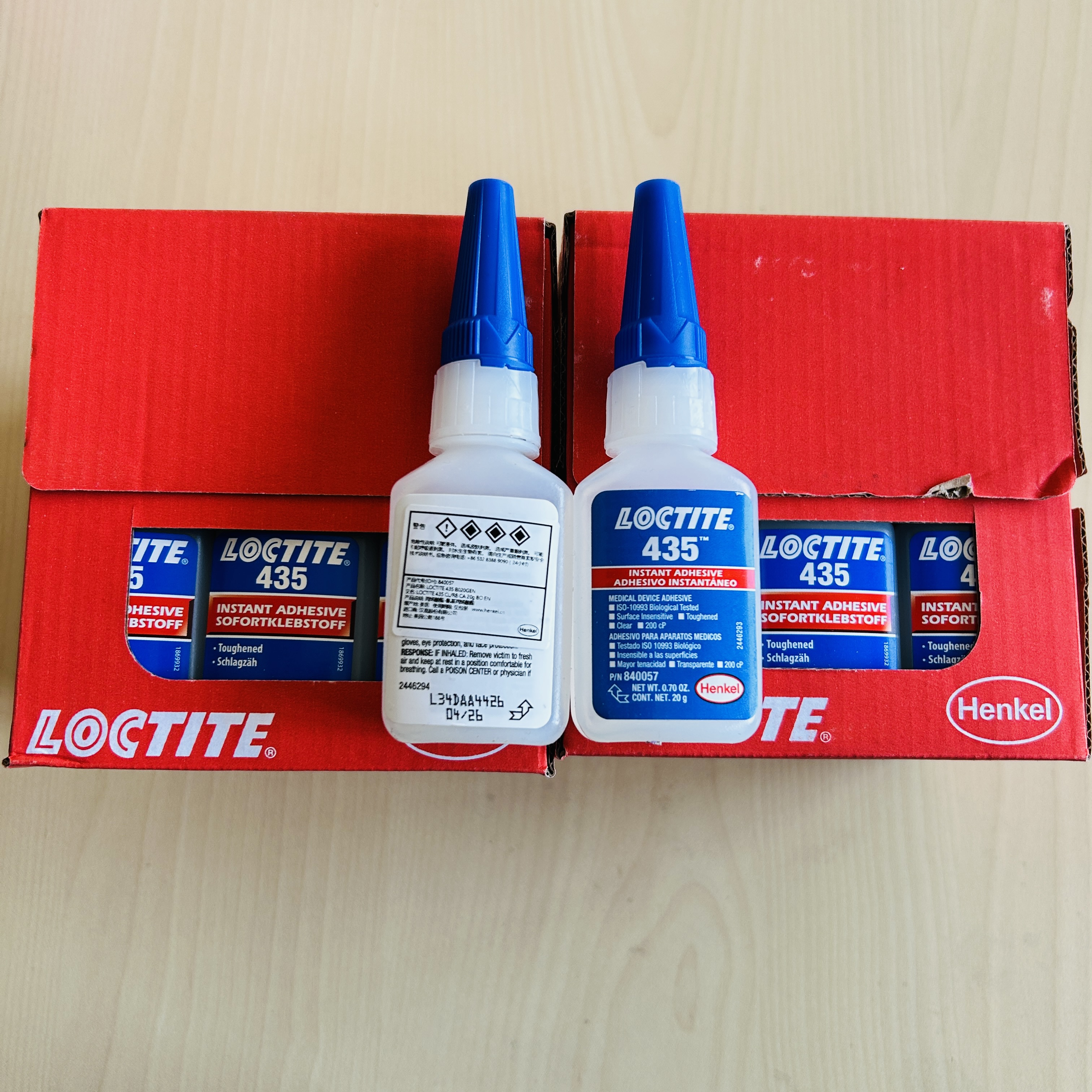

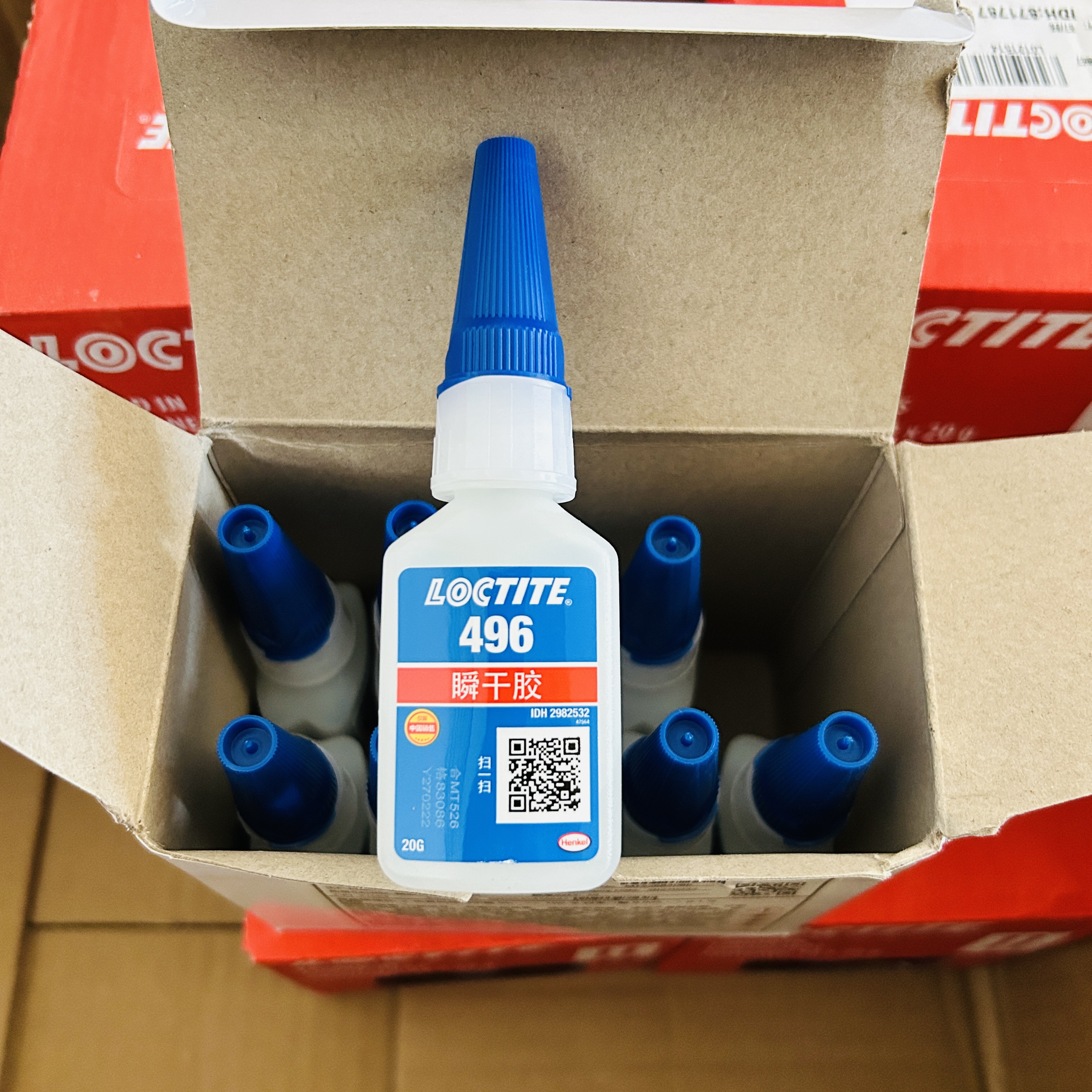

Instant adhesives are ideal for bonding small to medium-size parts with close fitting, smooth surfaces. They provide fast cure speeds and excellent bond strengths to a wide variety of substrates.

LOCTITE. instant adhesives are available in a range of formulations for anything from general purpose repairs to specialty highperformance assembly applications.

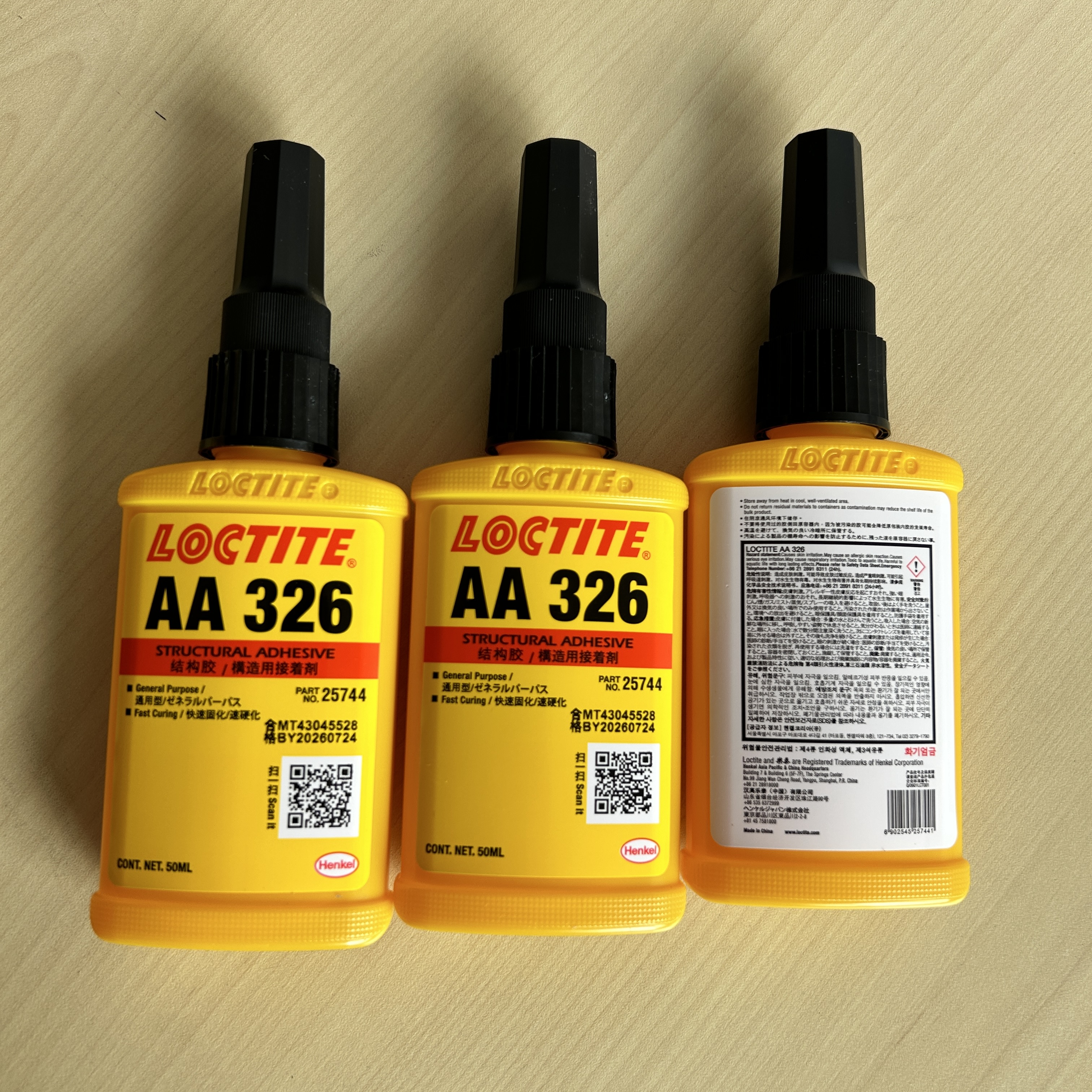

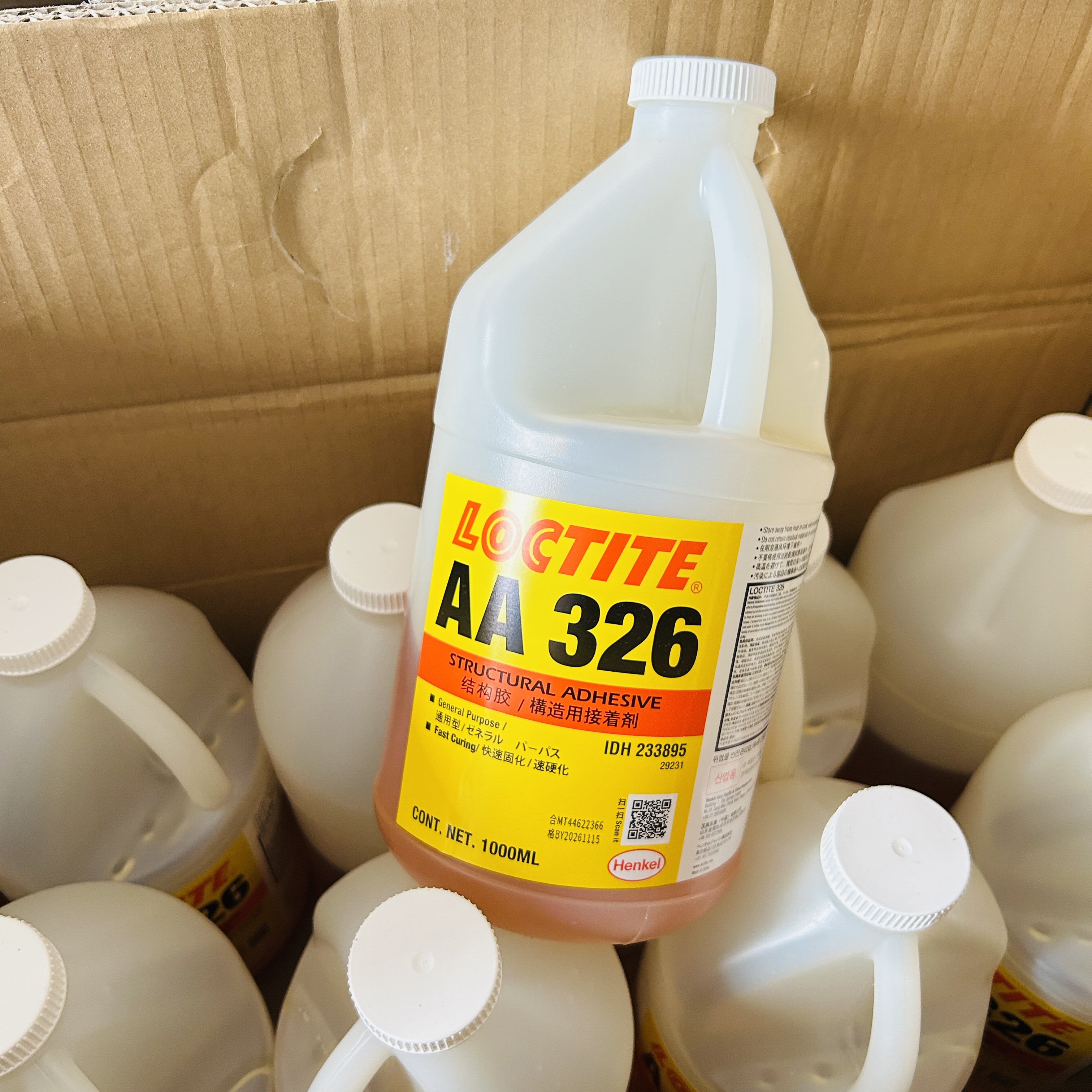

LOCTITE® AA 326

provides the following product characteristics:

Technology Acrylic Chemical Type Polyurethane methacrylate Appearance (uncured) Transparent, yellow to light amber liquid Components One component - requires no mixing Viscosity High Cure Anaerobic Secondary Cure Activator

Application Bonding Specific Benefits Room temperature cure

LOCTITE® AA 326 is a general purpose structural adhesive that is used for fast cure and high shear strength. Typical applications include bonding ferrites to plated materials in electric motors, loudspeaker hardware and jewelry where fast fixturing is required.

Thread sealants fill the space between threaded parts and can provide an instant, low pressure seal that prevents fluid and gas leaks which can cause costly downtime.

LOCTITE. has a variety of thread sealants, and the one you need will depend on your system material and thread type. There’s a LOCTITE. thread sealant for any type of piping system. metal

For metal-to-metal pipe connections and fittings, use LOCTITE. anaerobic thread sealants. They cure in the absence of air and by contact with metals.

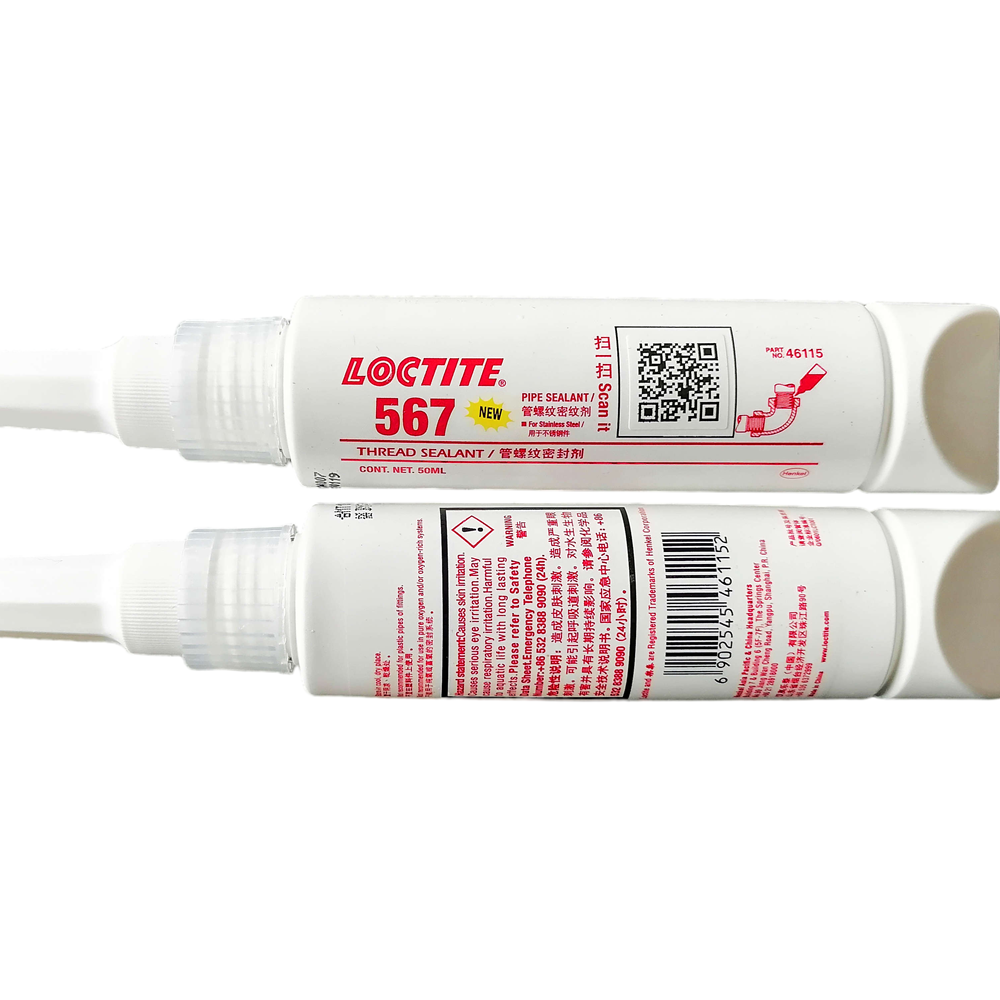

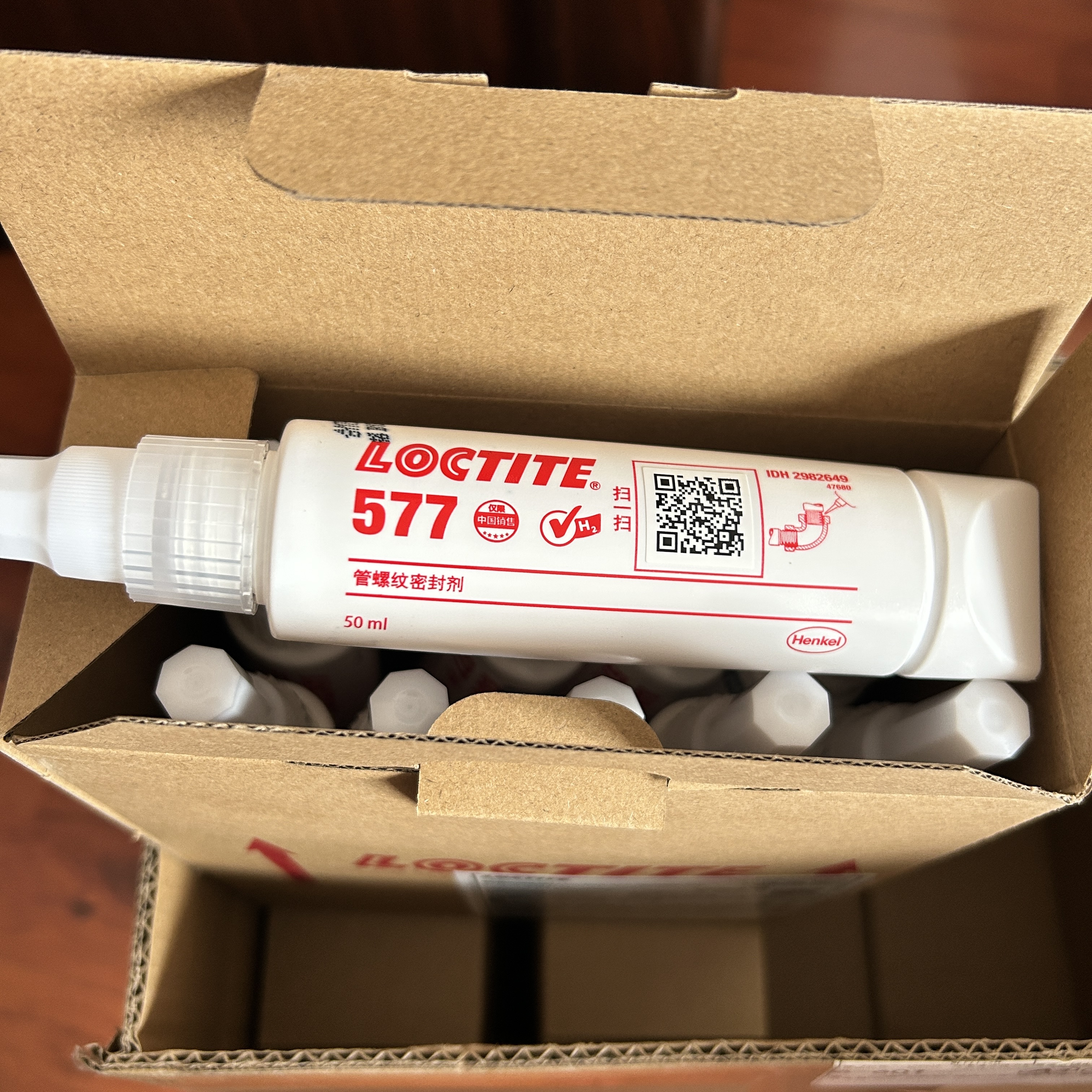

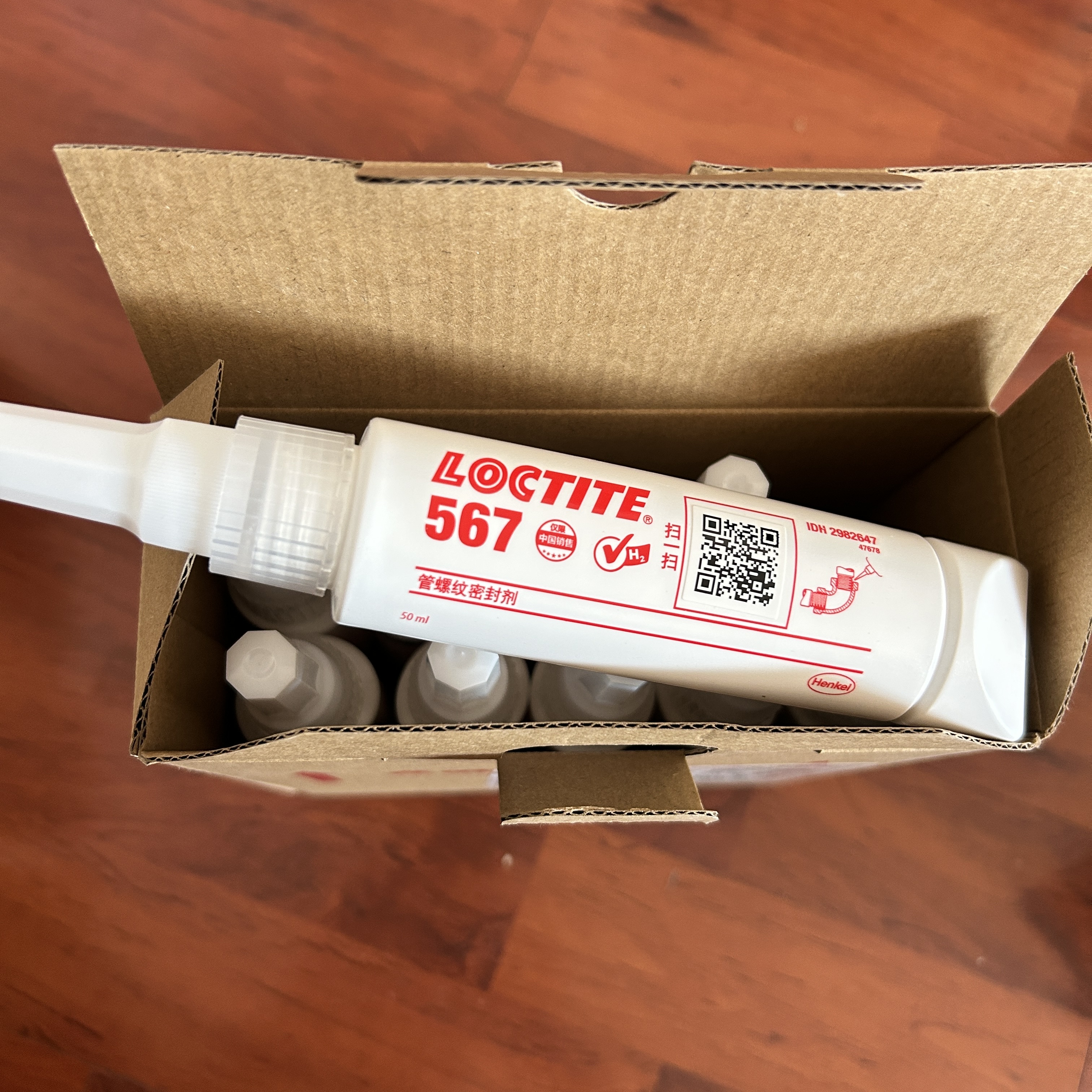

LOCTITE 567 LOCTITE 577 LOCTITE 561 LOCTITE 569

plastic For metal-to-plastic or plastic-to-plastic threaded pipe connections,

use LOCTITE. silicone / cord thread sealants. Both solutions comply with AS/NZS 4020:2018 for potable water systems. LOCTITE 55

To provide a leak-free seal over a long period of time, gaskets must fill voids and be resistant to liquids and/or gases, while withstanding the operating temperatures and pressures to which they are subjected.

LOCTITE. offers a range of gasketing products designed for any flange type, gap size or material.

Rigid Machined Flanges Rigid, machined flange surfaces typically are designed for no gap, allowing for metal to metal contact. For these assemblies, anaerobic liquid gaskets are the best choice because they provide the highest strength seal.

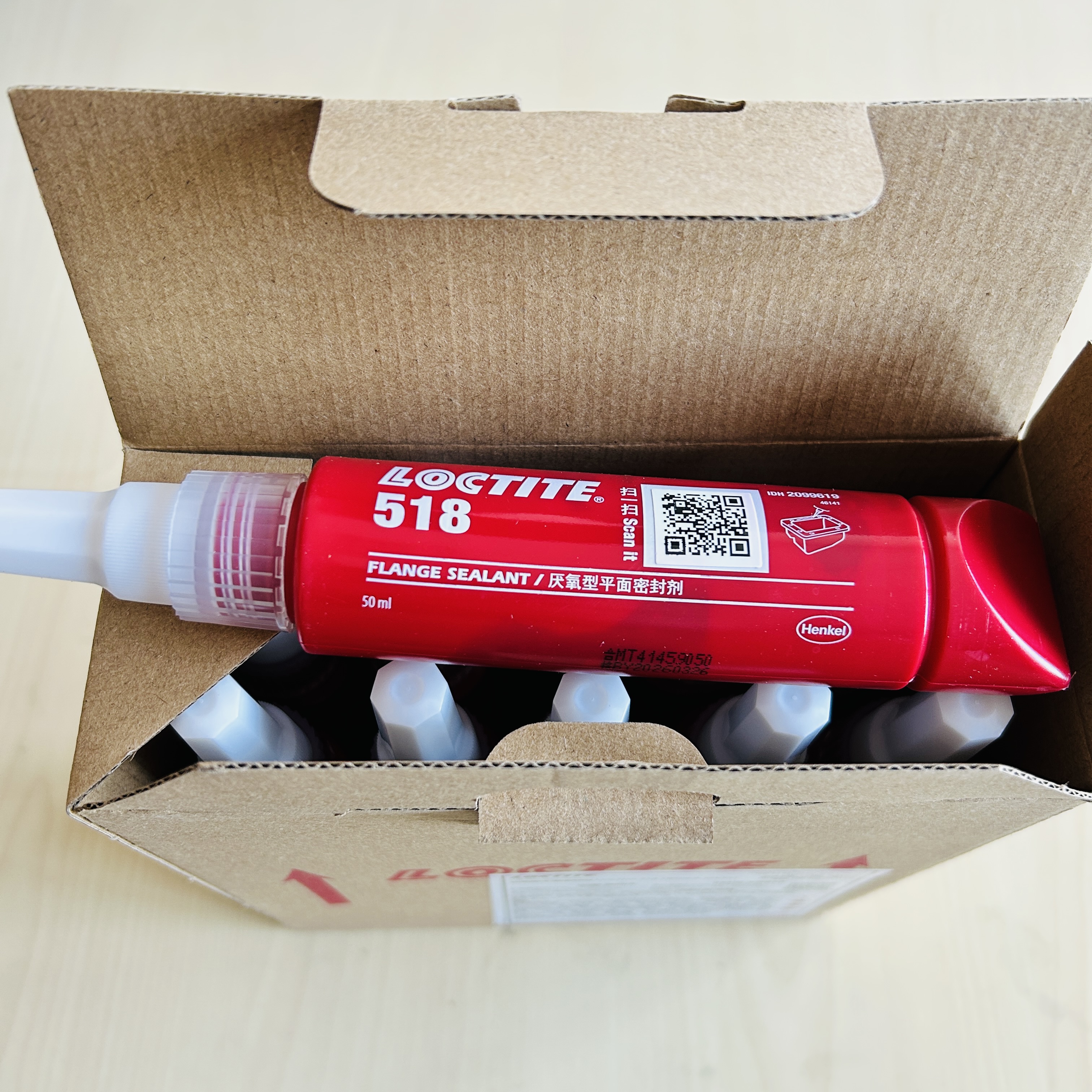

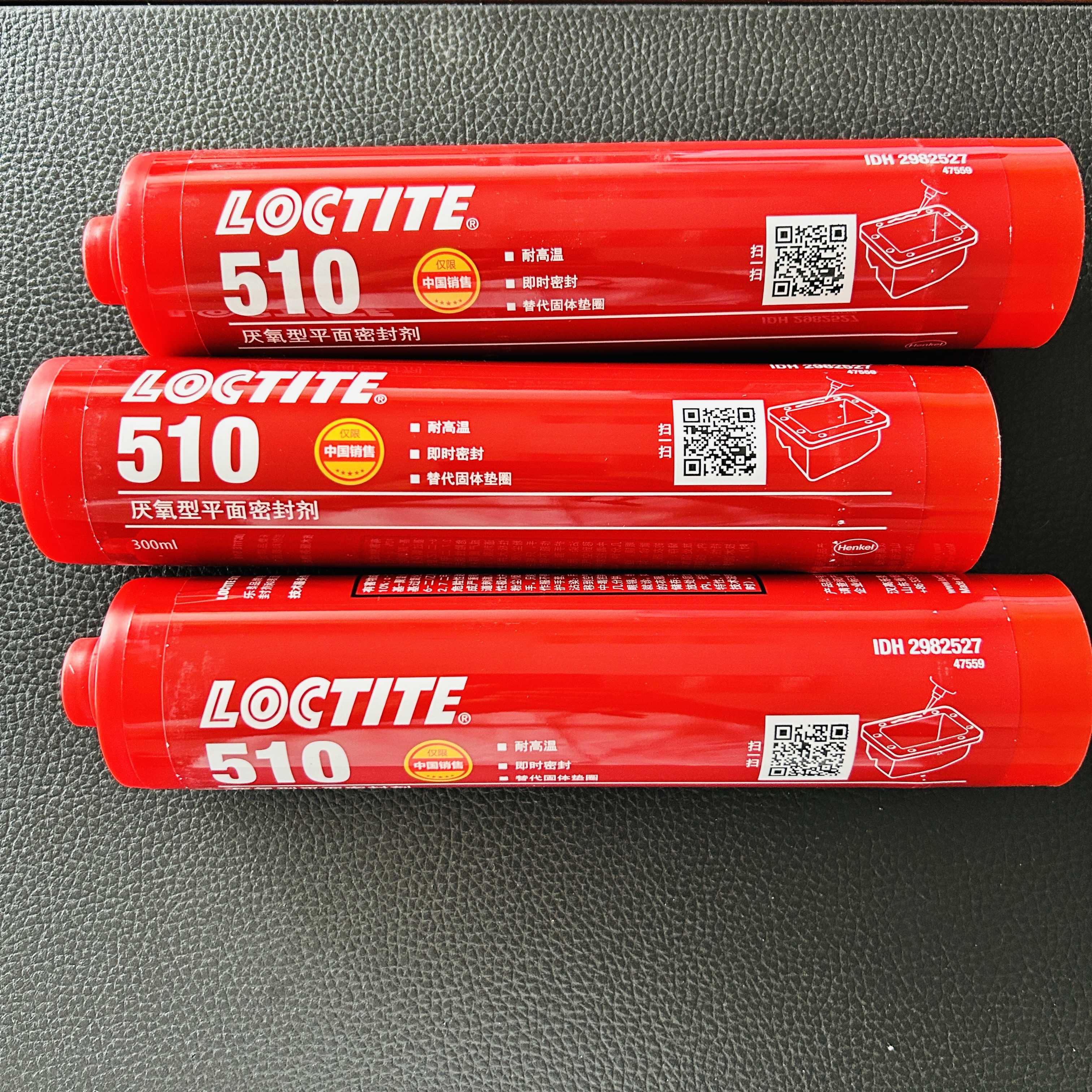

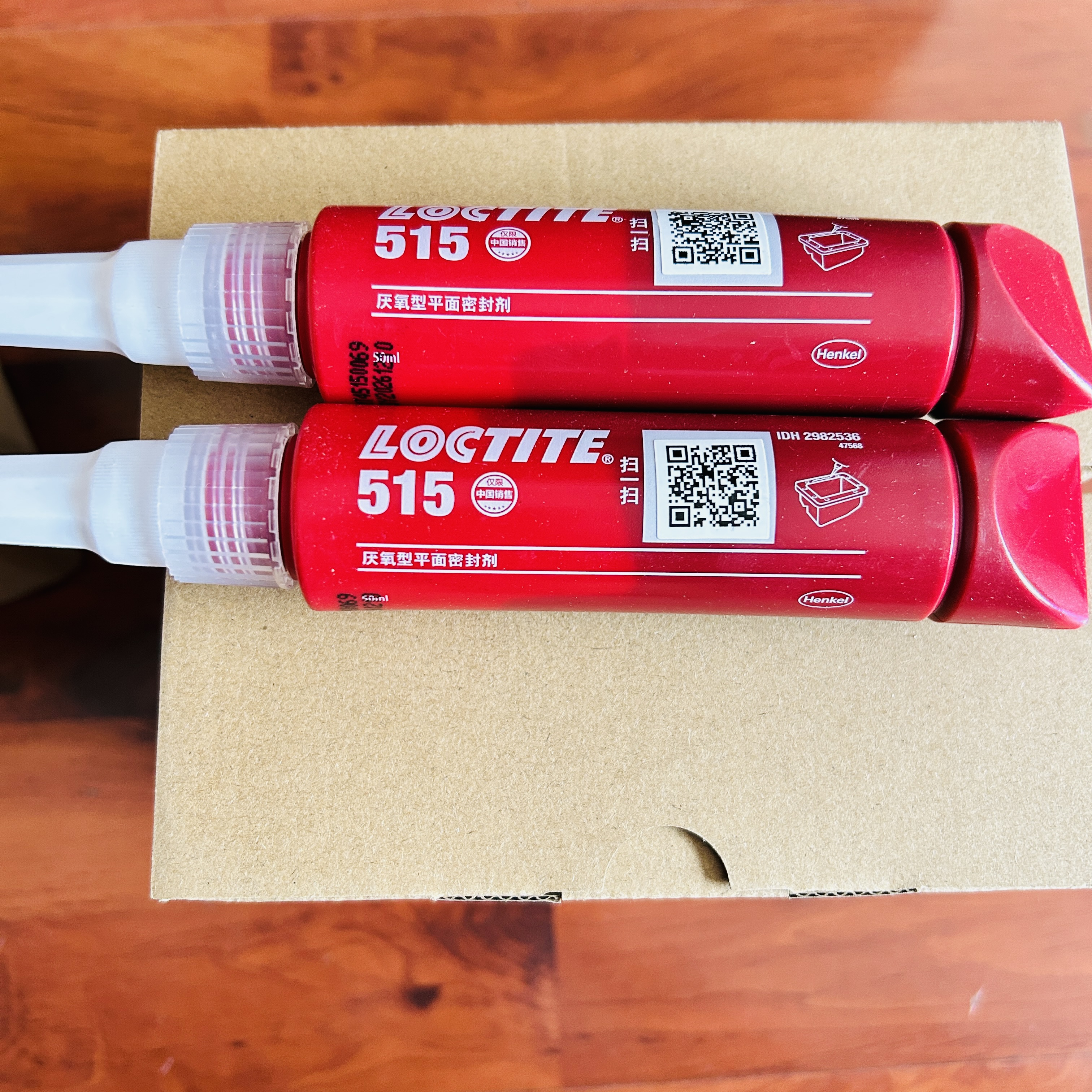

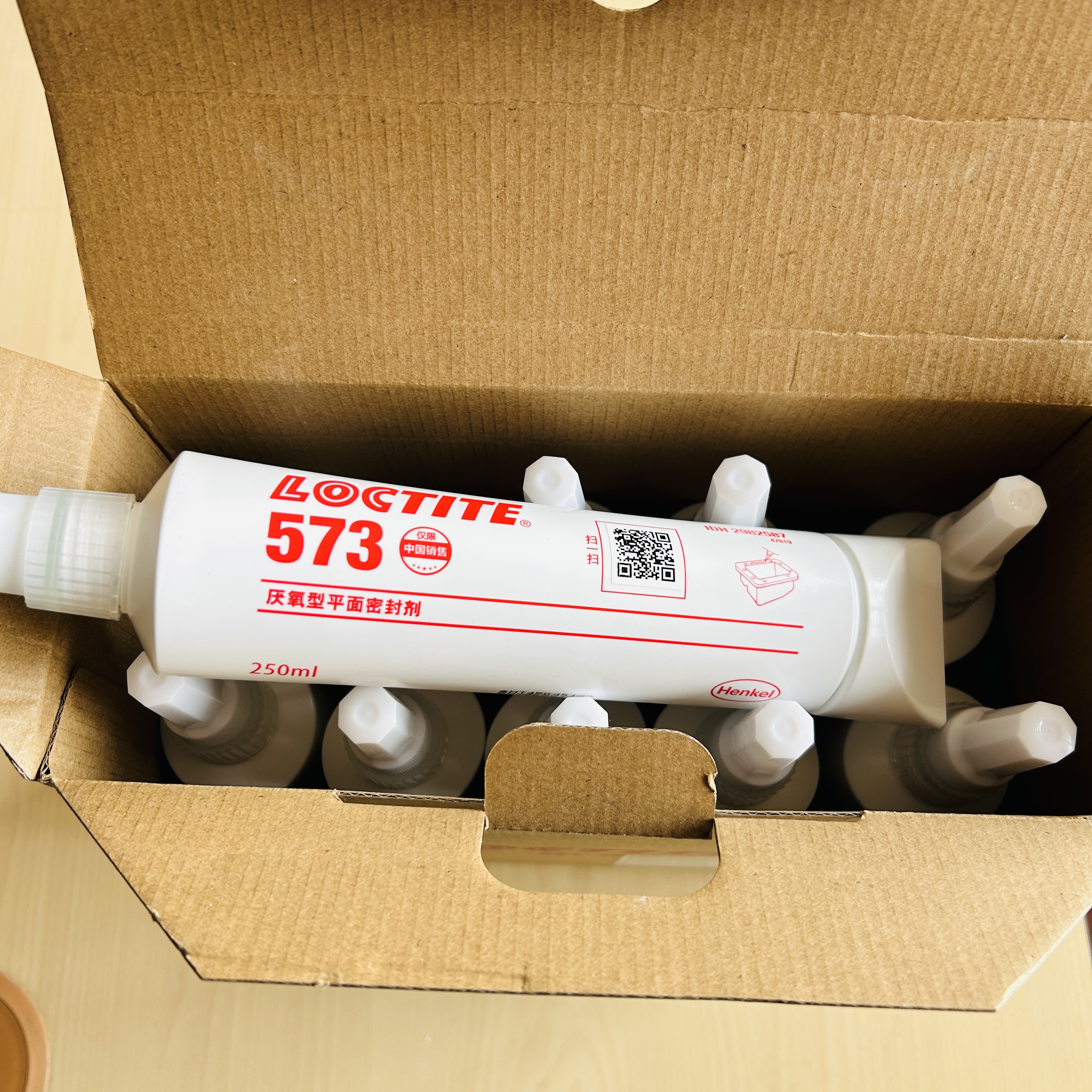

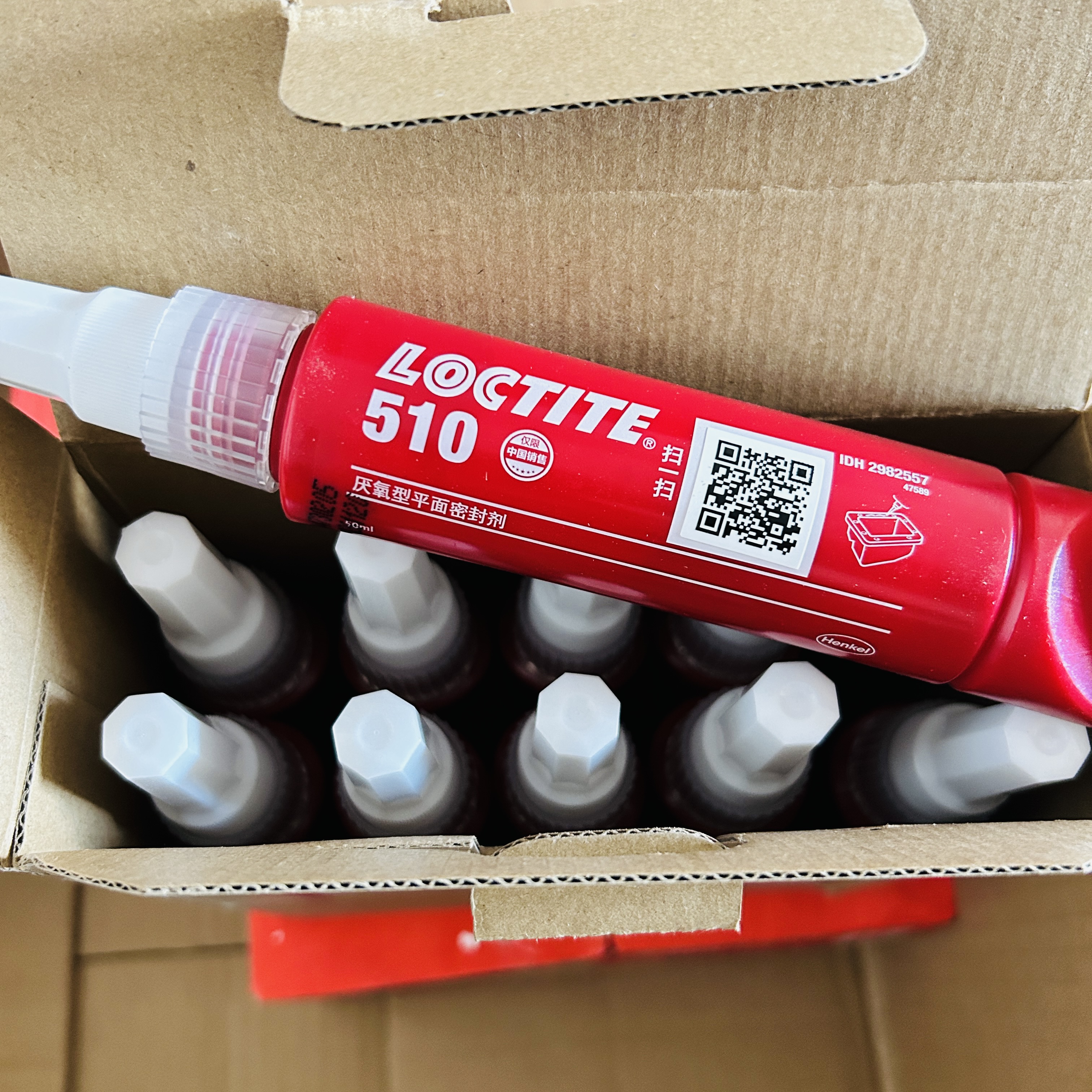

LOCTITE 518  LOCTITE 515  LOCTITE 510  LOCTITE 573  LOCTITE 5127

stamped or Flexible Flanges Typically thinner, stamped metal flanges can have larger gaps that need to be filled. They are also subject to more flex in service. For these types of assemblies, silicone liquid gasketing products provide the best seal. Stamped Flange

LOCTITE SI 5699  LOCTITE SI 5900  LOCTITE SI 587  LOCTITE SI 596

Retaining compounds secure bearings, keyways and cylindrical parts into housings or onto shafts, forming strong assemblies.

LOCTITE. retaining compounds offer an effective and economical method to eliminate challenges like loosening, corrosion, backlash and wearing by unitising the assembly and providing uniform stress distribution.

How to choose a retaining compound.

GAP size Up to 0.15 MM Typically,

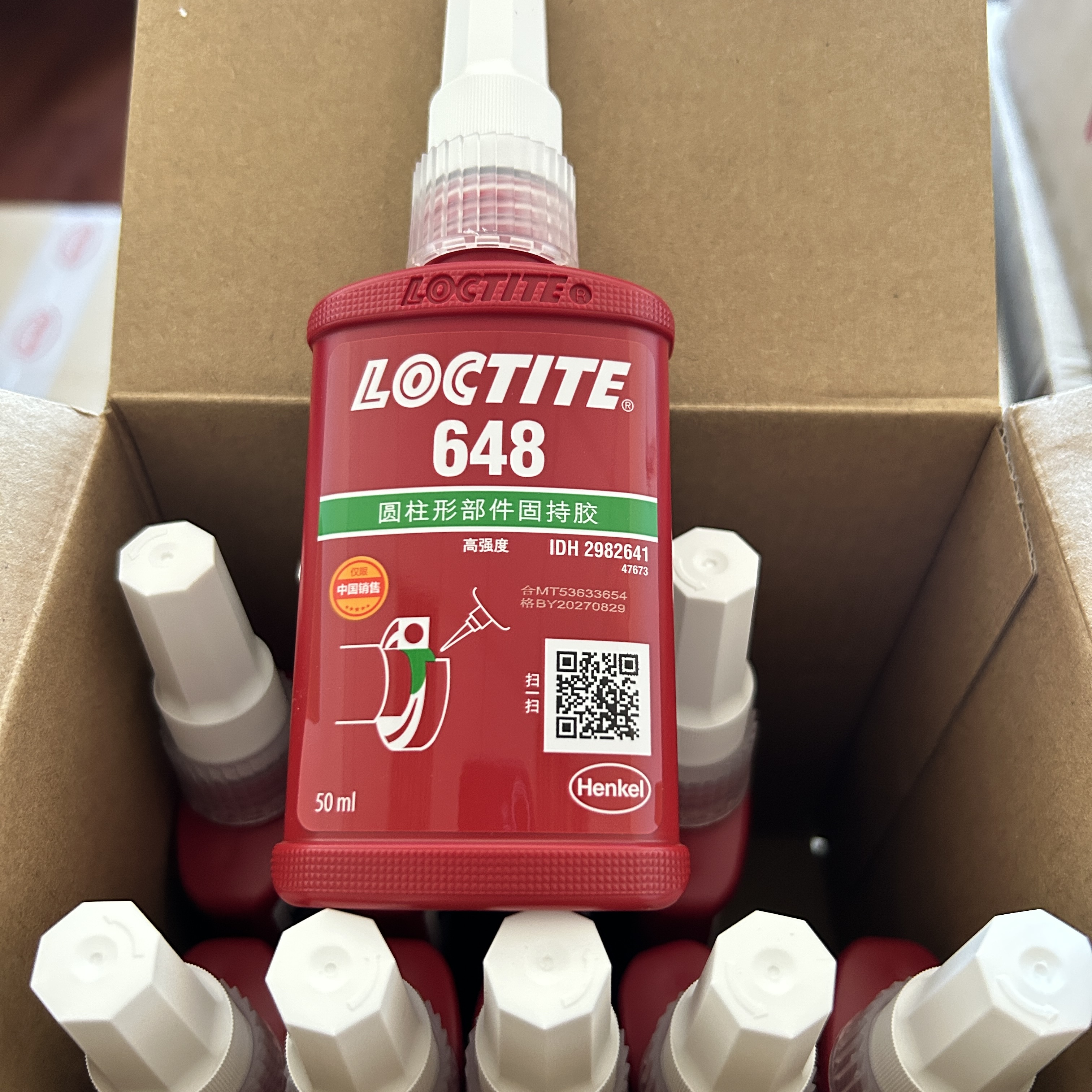

lower viscosity retaining compounds are used for gaps up to 0.15 mm. These are typically tight fitting interference fits like those found in press & shrink fits. LOCTITE 609 LOCTITE 641 LOCTITE 648

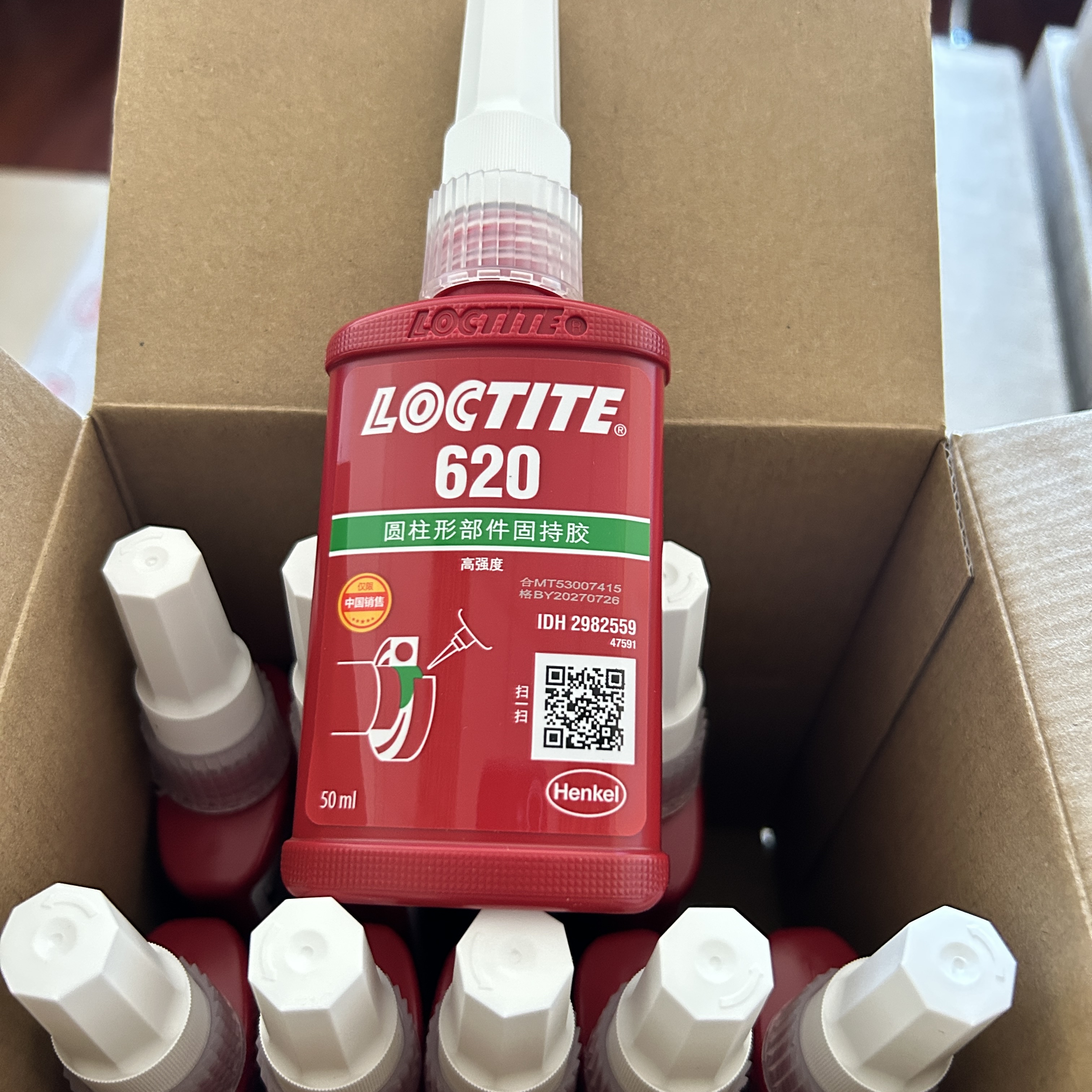

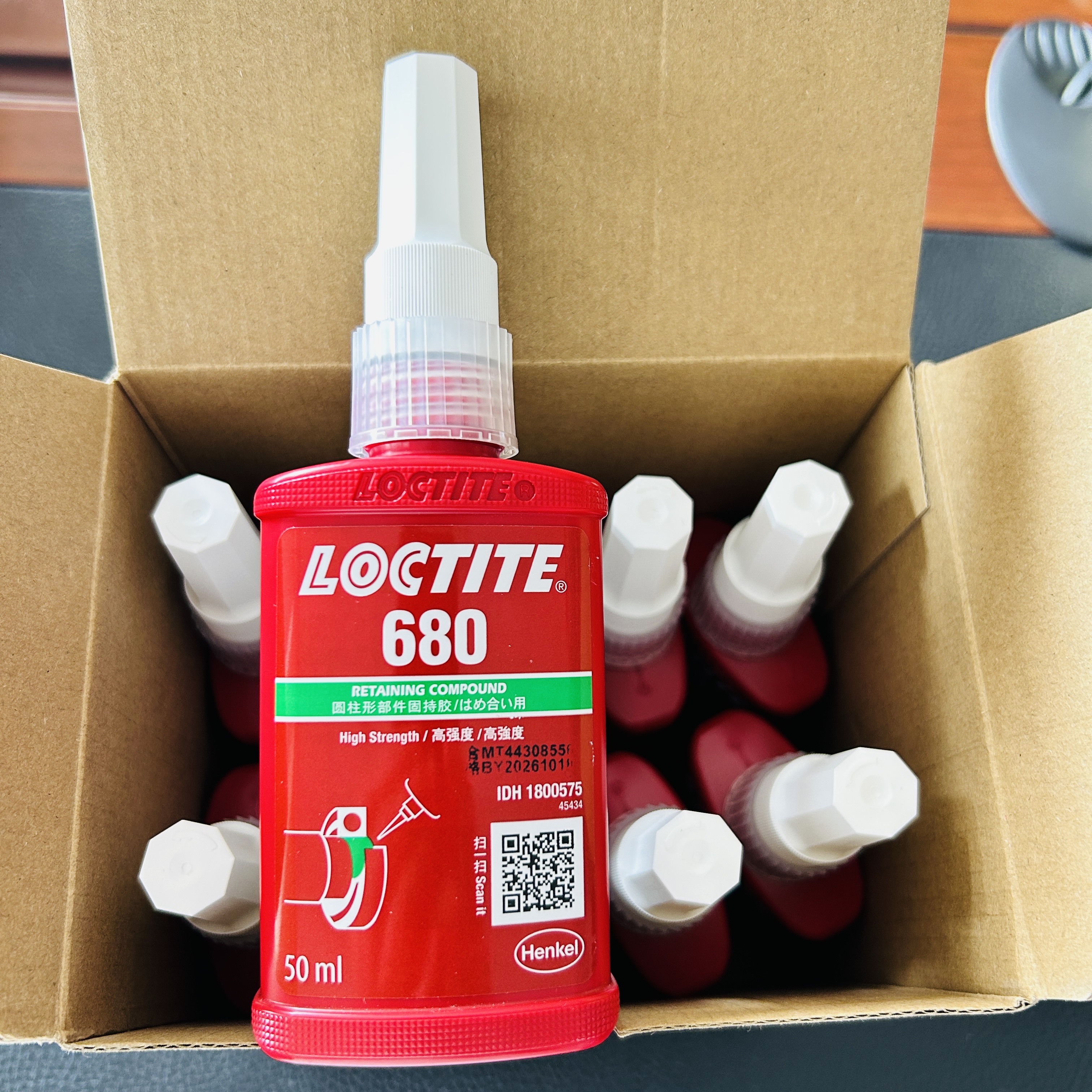

0.15 MM to 0.25 MM For gaps above 0.15 mm retaining compounds with higher viscosities that allow for better gap fill are used. These include bonded slip fits. LOCTITE 232 LOCTITE 620 LOCTITE 638 LOCTITE 635 LOCTITE 680

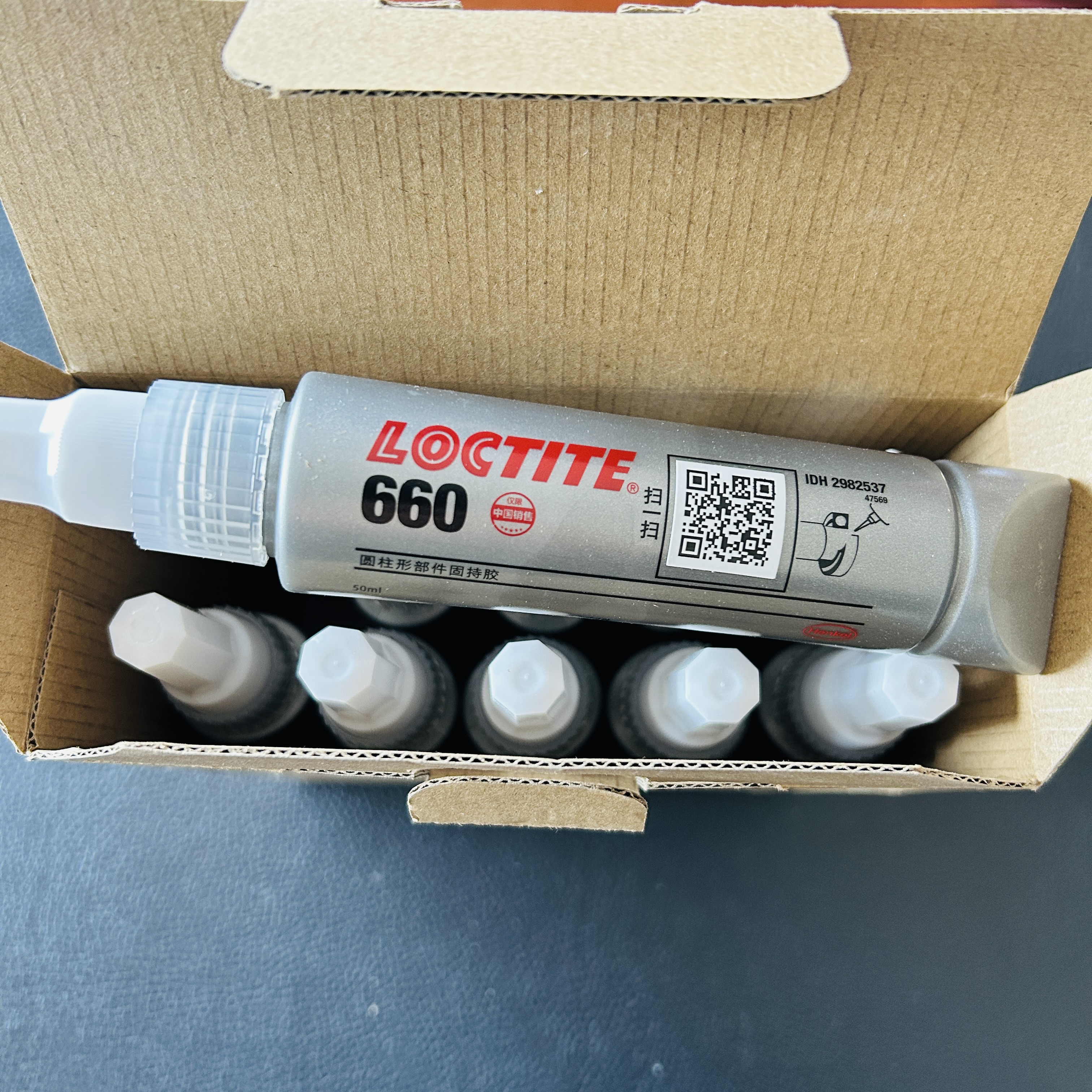

Gap Size 0.25 to 0.5 mm LOCTITE 660

1527 Silicone Sealant For PV Modules

PRODUCTION DESCRIPTION

White, UL certificated, super resistance to ultra violet(UV), rain, contamination and hail. For sealing the side frames of solar cell, sealing/adhesivethe junction boxes of solar celland for sealing the solar energy lamps.

TYPICAL APPLICATIONS

•Sealing the frames of solar cell.

•Sealing/adhesivethe junction boxes of solar cell.

•Sealing the solar energy lamps.
