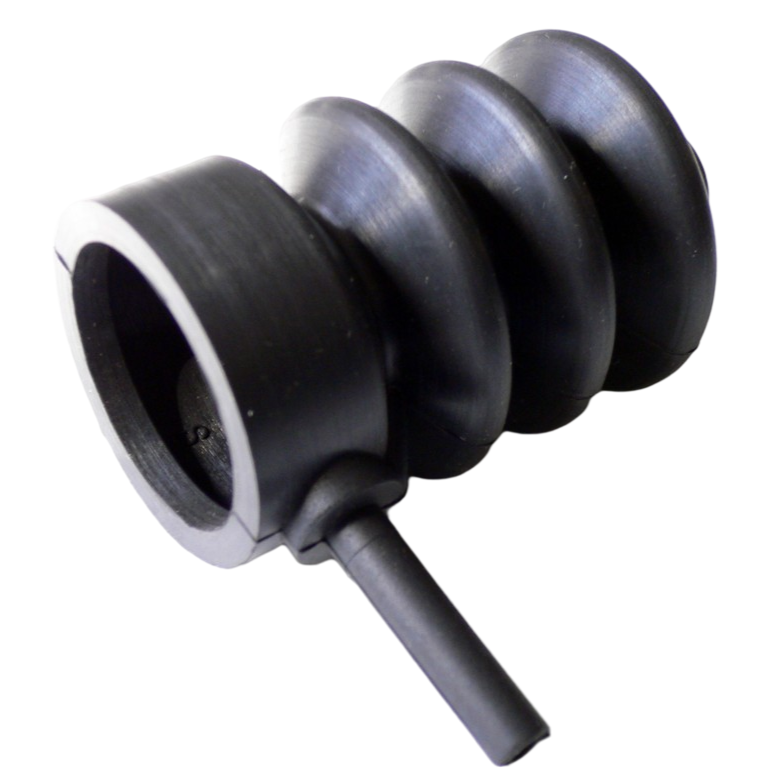

Ball joint boots dust cover. Tie rod end boots Dust-proof sealing for the steering of the car chassis pull rod.

Turn the ball head of the crossbar

Lower swing arm ball head Stabilizer bar connecting rod ball joint The ball joint of the gearshift pull cord of the transmission

Agricultural machinery and construction machinery

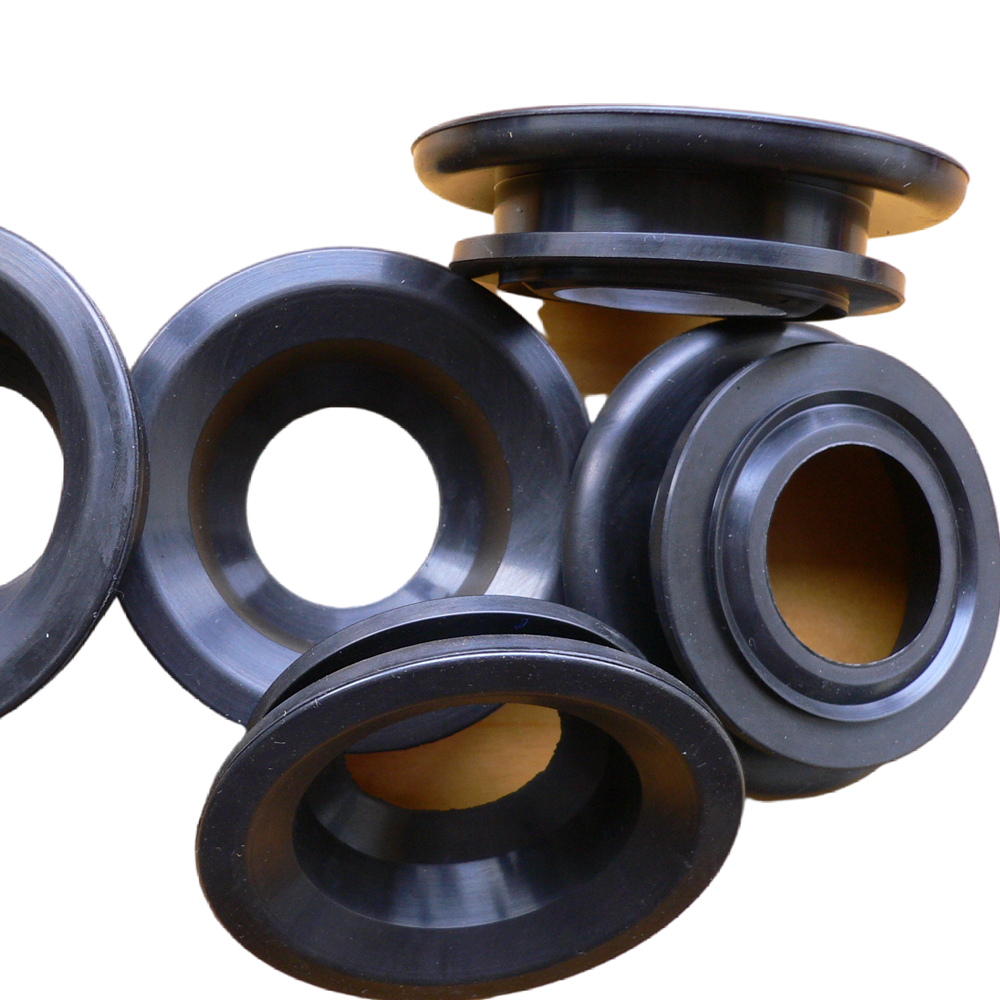

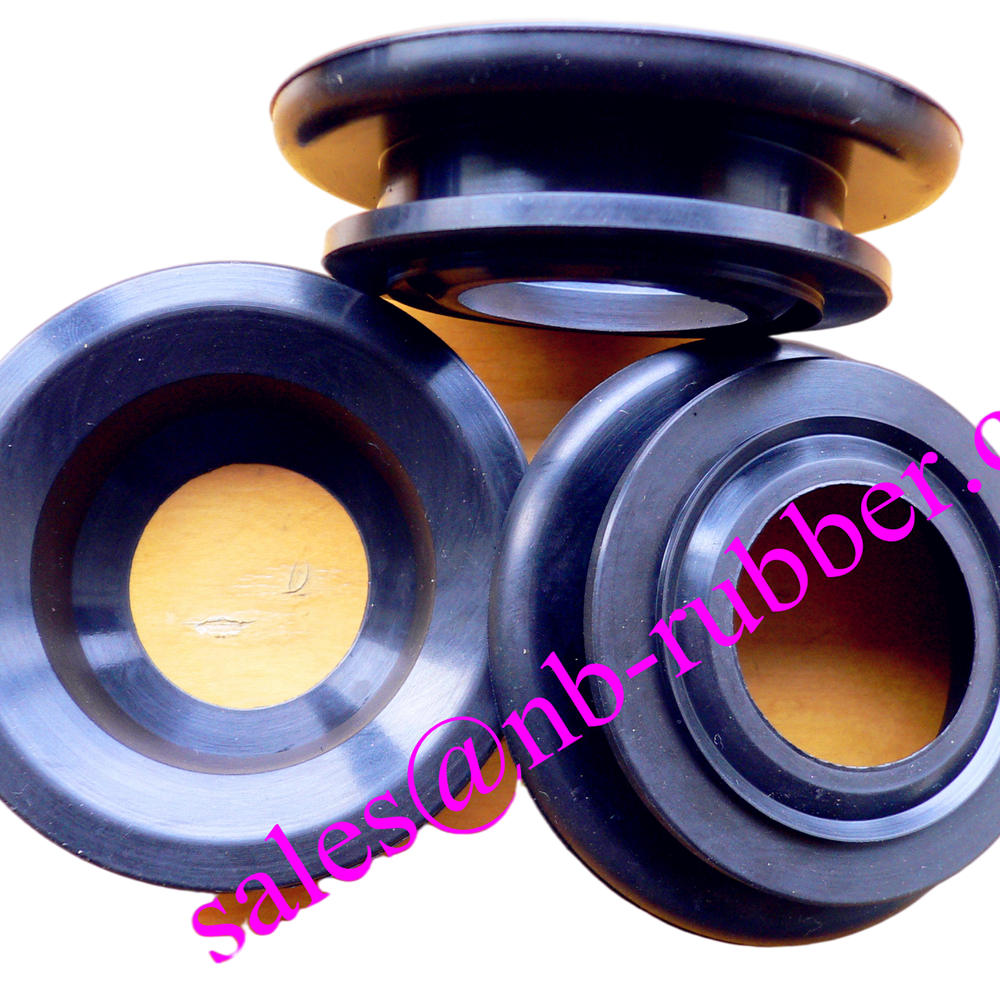

Rubber grommet:

Applied to the cable protection of industrial control cabinets and communication equipment, as well as the connection lines of sensors, motors and other devices As long as there are wires or cables that need to pass through a partition (especially a metal or plastic partition), and the environment is at risk of vibration, friction, dust or water damage, then a rubber grommet is an almost indispensable standard solution

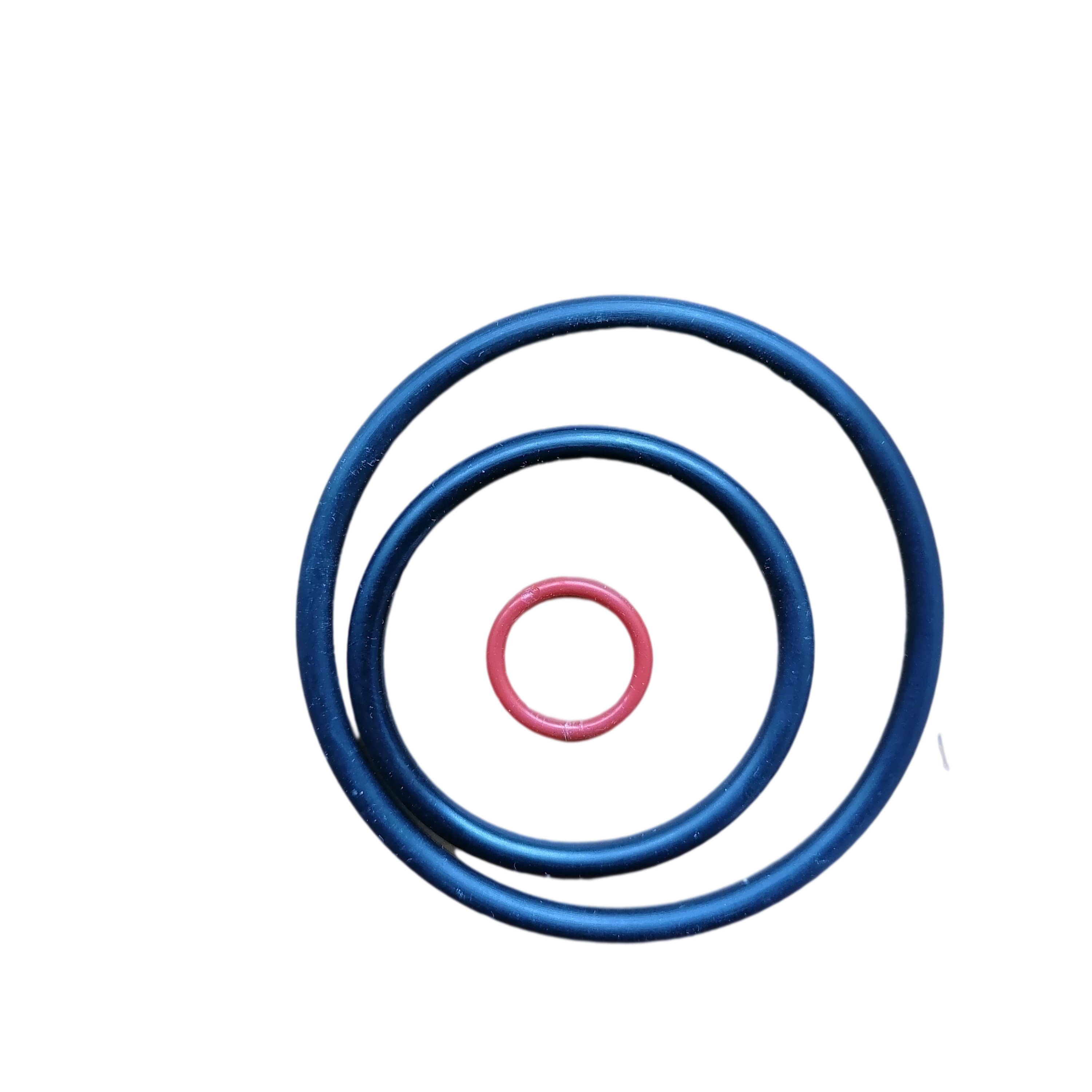

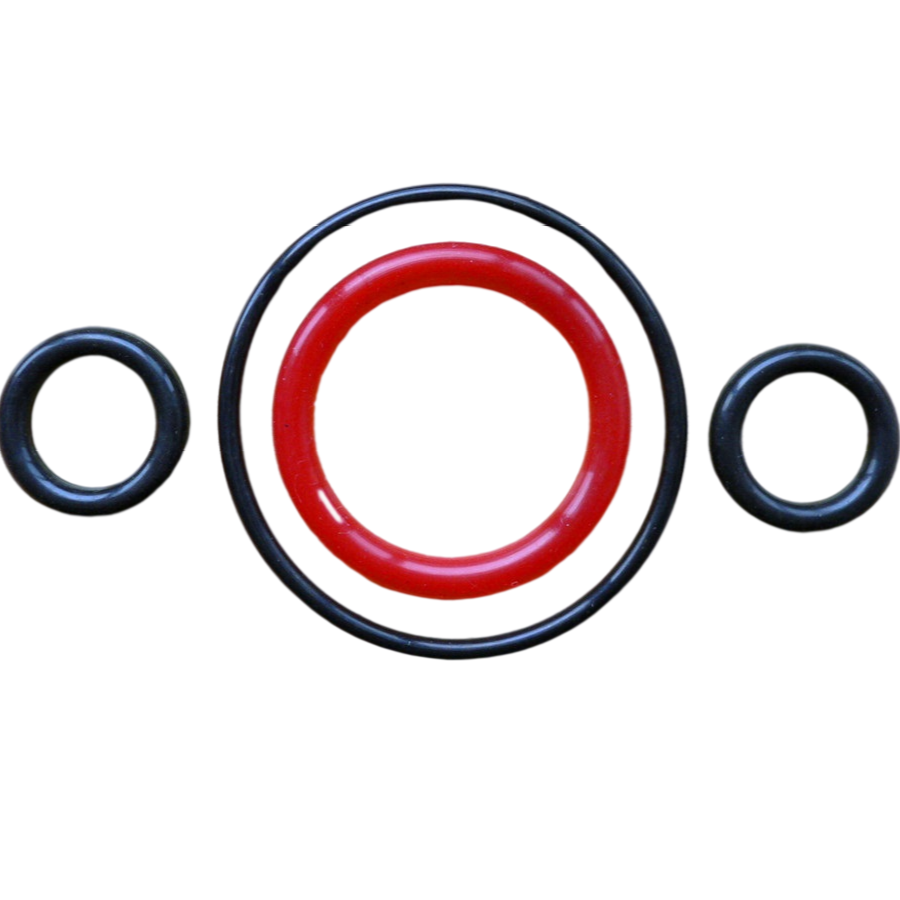

Rubber O-rings:

Applications include: Sealing for water pumps, master and slave brake cylinders; air conditioning systems: Sealing for refrigerant lines; hydraulic equipment: Sealing for hydraulic cylinders, valves, and pipe joints to seal high-pressure liquids (such as hydraulic oil); pneumatic equipment: Sealing for cylinders, pneumatic valves, and pipe joints to seal compressed air; pumps and valves: Shaft and valve seat sealing for various water pumps, chemical pumps, and valves; household appliances: Sealing for water inlets and outlets of washing machines, dishwashers, and water heaters; flange connection surfaces of pipes; end faces of cylinder heads and cylinders; between valve covers and valve bodies; mating surfaces of electrical enclosures; bathroom systems.

Material:  NBR  EPDM  SILICONE  FKM

We have more than 3000 types molds for your choose.

Rubber bushing, silent block

Used in shock absorbers or control arms of automobiles, and also in shock absorbers of other mechanical equipment. Control arm bushing: Connects the lower control arm/upper control arm to the subframe or body. Spring and shock absorber bushing: At the upper and lower mounting points of the coil spring and shock absorber. Stabilizer bar bushing: Fixes the stabilizer bar (anti-roll bar) to the frame or subframe. Engine and transmission mounts The components for suspending exhaust pipes are usually rubber bushings. Pumps, compressors, generators: Bushings are used at the connection points with the base to prevent vibration transmission to the building structure. Washing machines, refrigerators/air conditioner compressors: Bushings are used at the connection points between the compressor and the casing to prevent excessive noise caused by compressor operation vibration.

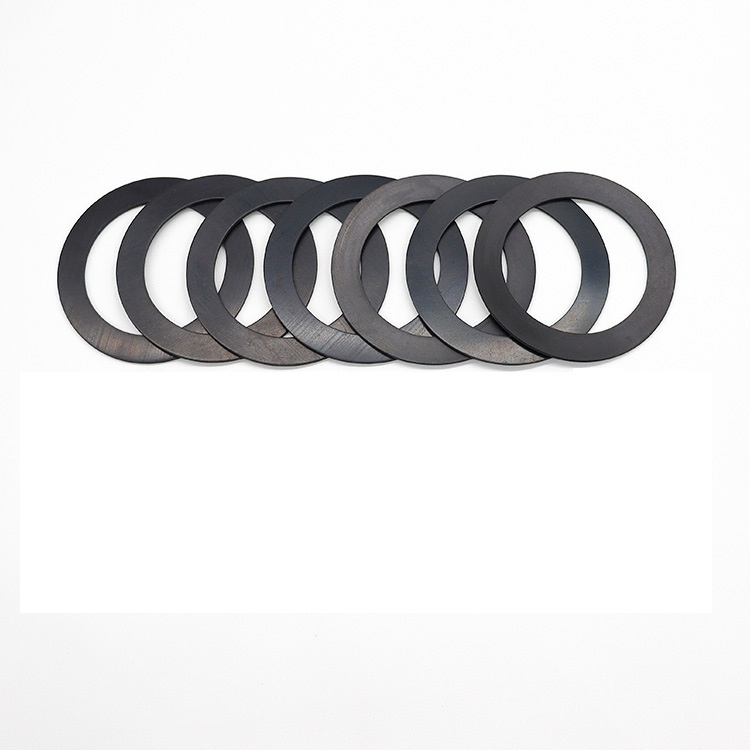

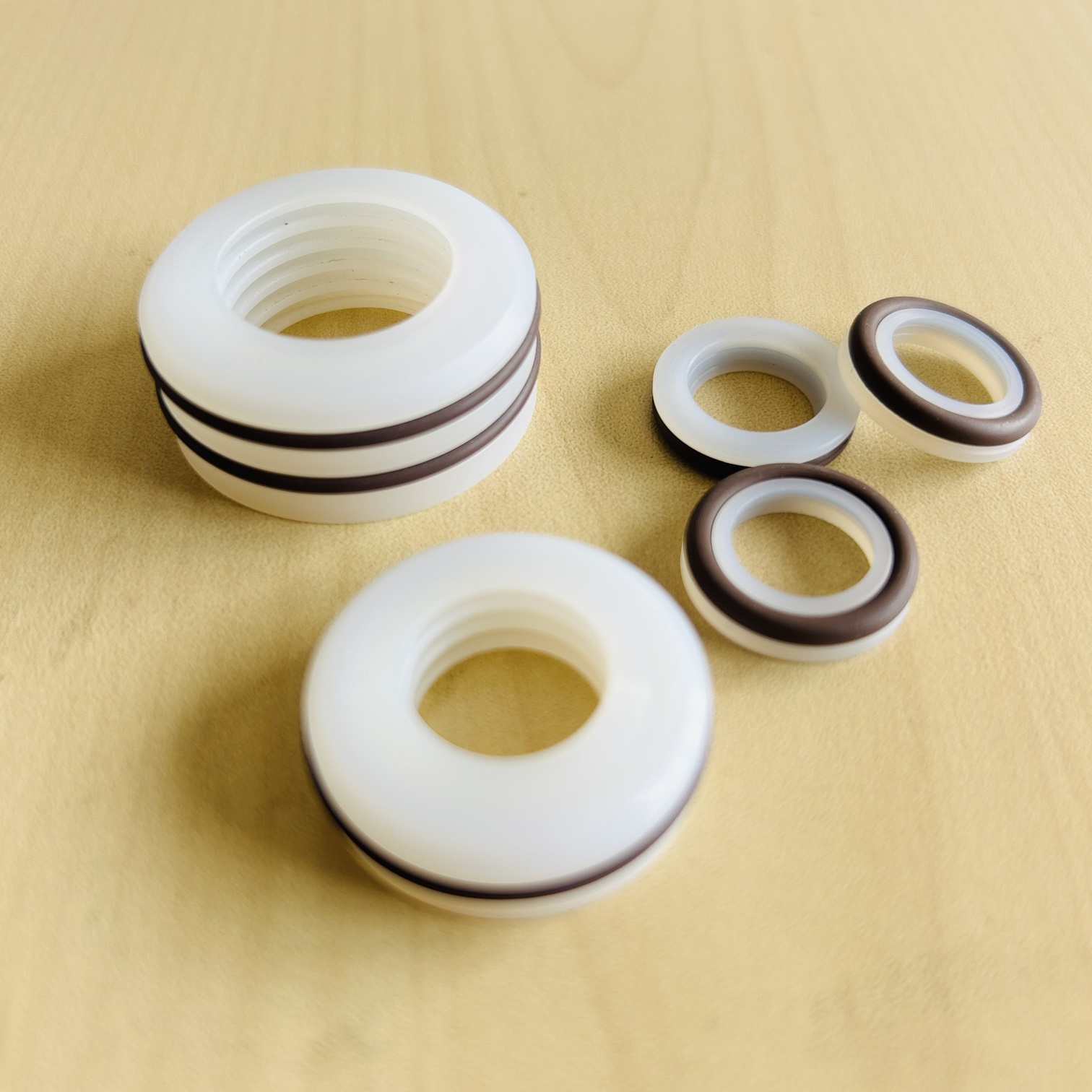

Rubber washer, PTFE washer

Most of them are used for connection and sealing of bathroom pipes. Among them,

PTFE washers are used in hydraulic systems in conjunction with other rubber washers to provide support and sealing. Water pipe joint: Sealing gasket between faucet, Angle valve and hose Sealing rings for household appliances such as the water inlet valve of the washing machine, the door gap of the dishwasher, the lid of the rice cooker, and the cup lid of the blender Table and chair footrests to prevent floor scratches and reduce shock and noise Pump gasket: Ensures that the coolant circulates within the pump without leakage Gaskets are needed at the connection points of various pumps (water pumps, oil pumps), valves and pipe flanges to seal the medium

Vibrate conveyor bushing The swing arm used for vibrating conveyors serves to prevent shock. This product is specifically designed for connecting rod vibrating conveyors. We have an standard conveyor bushing.

Brake seals

It is used for automotive brake pump assemblies and sub-pumps, disc brakes, and is installed on the piston of the brake caliper. Drum brake: Installed on the piston of the brake wheel cylinder

Customized products Customized molds are made according to the customer's drawings and material requirements.

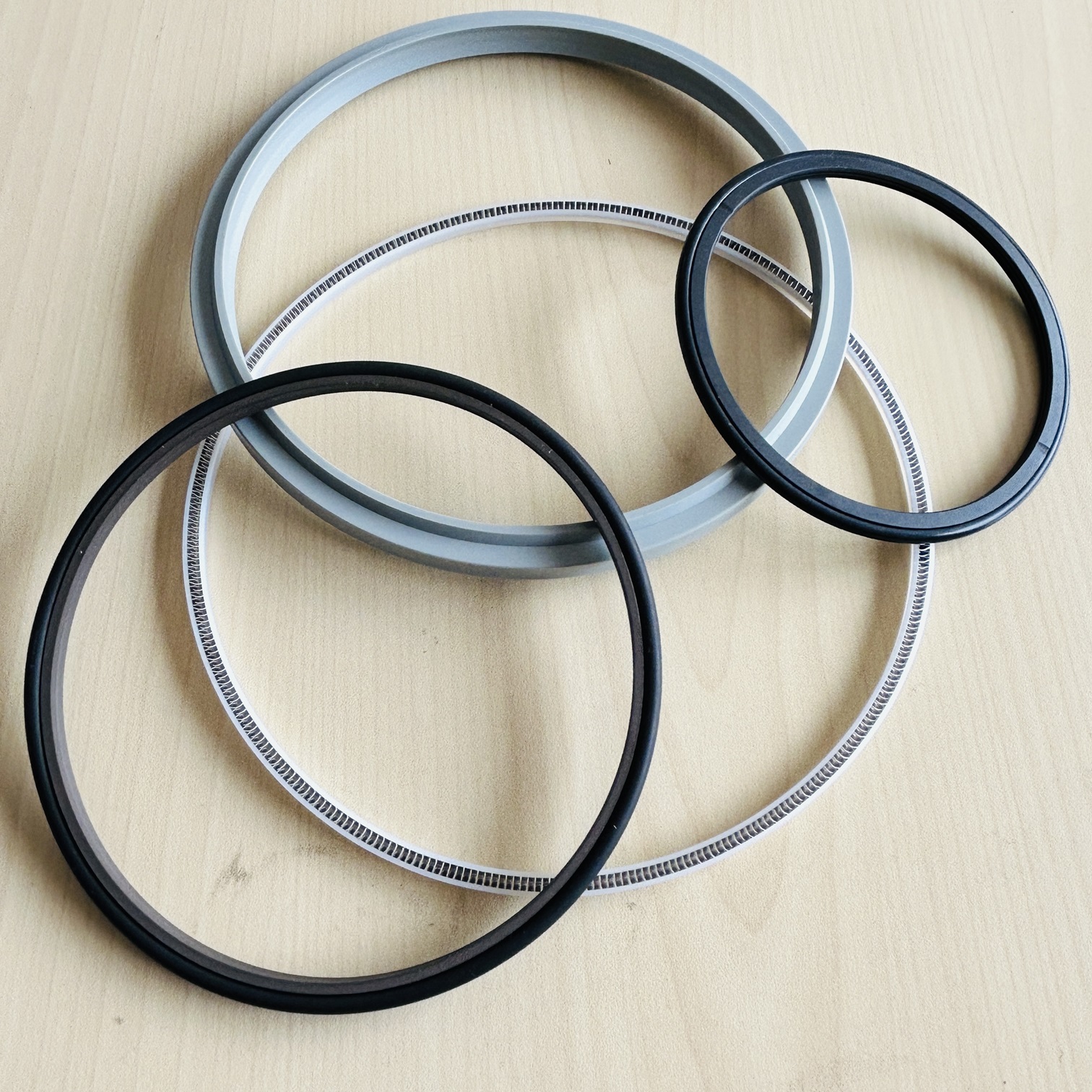

Hydraulic cylinder seals, rod seals, piston seals In simple terms,

hydraulic seals are mainly used in hydraulic components and systems that need to prevent the leakage of hydraulic oil (or other hydraulic fluids)

Main application scenarios

1. Construction machinery (the largest application field

2. Excavator: Hydraulic cylinders for boom, bucket arm and bucket; Rotary motor Walking motor. Loader: lifting cylinder, tipping cylinder. Crane: boom telescopic cylinder, luffing cylinder, lifting motor. Bulldozer/roller: Track tensioning cylinder, vibration motor.

3. Industrial Manufacturing and Automation Injection molding machine: Hydraulic cylinders for ejector movement, mold closing, and material injection, etc. Machine tools (stamping, forging) : main working hydraulic cylinder, auxiliary clamping cylinder. Robot: Actuator cylinder for hydraulically driven joints. Metallurgical equipment: The lowering cylinder of the steel rolling mill, the tilting hydraulic system of the steelmaking furnace

4. Agricultural machinery Tractor: Hydraulic lifter, steering cylinder. Combine harvester: Hydraulic cylinder for header lifting and grain box unloading Special Equipment and National defense Mine hydraulic supports: Tens of thousands of columns and jacks all require seals Hydraulic gate for water conservancy: A huge hydraulic cylinder for the hoist.

Hydraulic cylinder This is the place where seals are most concentrated and have the highest requirements. Piston seal: Installed on the piston, it is the main seal of the hydraulic cylinder, preventing high-pressure oil from leaking from both sides of the piston to each other (internal leakage). It directly determines the thrust and pressure-holding capacity of the hydraulic cylinder. Piston rod seal/rod seal: Installed on the inner side of the cylinder head, it is a key seal to prevent hydraulic oil from leaking into the environment.

Dust-proof ring: Installed on the outermost side of the cylinder head, it prevents dust, soil and other contaminants from entering the hydraulic system and protects the piston rod and internal seals. Guide support ring: Guides the piston and piston rod to move in a straight line, preventing direct contact of metal parts to avoid wear and jamming.

Static sealing: such as O-rings, used for fixed connection sealing between the cylinder barrel and the end cover.

2. Hydraulic pump and hydraulic motor Used for rotating shafts to prevent oil leakage from the shaft ends (lip seal for rotating shafts). It is used between the internal plunger, distribution plate and other moving pairs to prevent high-pressure oil from communicating with low-pressure oil, ensuring the volumetric efficiency of the pump and motor.

3. Various types of hydraulic valves It is used between the valve core and the valve body (valve stem seal) to prevent the leakage of control oil. Used for the mating surface between valve blocks (static sealing, such as O-rings)
